If you’re sourcing rotary unions UK engineers rely on, you’re likely balancing performance, longevity, and compatibility with your system. The goal is simple: ensure a reliable transfer of fluid, air, oil, or steam between a stationary source and rotating machinery—without leaks or downtime. This guide helps you choose the right materials, seal, and design so your equipment performs exactly as it should.
For high-precision, industrial-grade solutions, many UK-based manufacturers—including SREG Products Ltd—offer rotary unions designed to meet a wide range of performance needs.
What Are Rotary Unions?
Rotary unions—also referred to as rotary joints—allow the controlled flow of media from a fixed line into a spinning or moving part. They’re widely used across many applications, including printing, packaging, metal processing, and food production. At the heart of it all is the need to maintain a sealed connection while supporting a common rotational axis.
When designed properly, a rotary union can handle high speeds, high pressure, and harsh media—making it a small component with a big responsibility.
Materials: What Should You Choose?
The material used in a rotary union has a direct impact on its durability, strength, and resistance to corrosion. You don’t need the most expensive option—you need the right one for your job.
- Carbon steel: Common in industrial machinery where pressure is moderate, and corrosion isn’t a major concern.
- Stainless steel: Ideal when dealing with steam, oil, or other media that might cause corrosion or thermal stress.
- Aluminium: Lightweight and cost-effective. Good for moderate duty cycles and air applications.
- Other materials: In specialist industries, unions may be manufactured using premium materials like titanium or certain plastics—especially where weight, chemical resistance, or hygiene are priorities.
Tip: Match the material not just to your pressure needs, but also to your fluid type, temperature, and external environment.
Sealing Solutions: What’s Best for Your Application?
The seal is the most important moving part of your rotary union. It keeps media in and contaminants out—even while rotating at high speeds.
Types of seals include:
- Mechanical seals – Reliable under high pressure and high RPM. Great for long-term use and tough conditions.
- Lip seals – A simpler, more economical option. Suitable for lower-speed, lighter-duty systems.
- Bellows or spring-loaded seals – Best when some misalignment or vibration is present.
Tip: Always consider the type of media and operating temperature before choosing your seal. A good seal prevents costly leaks and early wear.
Performance: Key Considerations
Before purchasing, make sure you’ve assessed your system’s exact requirements. Focus on these performance factors:
- Pressure: Can the rotary union handle your system’s operating and peak pressures?
- Speed: Is your rotating machinery running within the union’s RPM tolerance?
- Temperature: Will the unit be exposed to steam, hot oil, or other heat-intensive media?
- Media: Are you transferring corrosive liquids, gas, or other material that needs special sealing?
Tip: Always check the full specification sheet, not just the headline ratings. Performance is about real-world conditions, not lab tests.
Swivel Joints vs Rotary Joints
While rotary joints are designed for continuous 360° rotation, swivel joints allow pivoting or angular movement. Both serve similar purposes—facilitating the transfer of media—but suit different kinds of motion.
Use a swivel joint when movement is limited to back-and-forth motion. Use a rotary union for continuous spin applications.
Tip: Knowing how your machinery moves will help you pick the correct component the first time.
Sizing a Rotary Union for Your System
Selecting the right size means more than just matching thread diameter. You need to think about:
- Port size vs system flow rate
- Shaft diameter and space constraints
- Compatibility with technologies already in use
- How the rotary union integrates with existing machinery

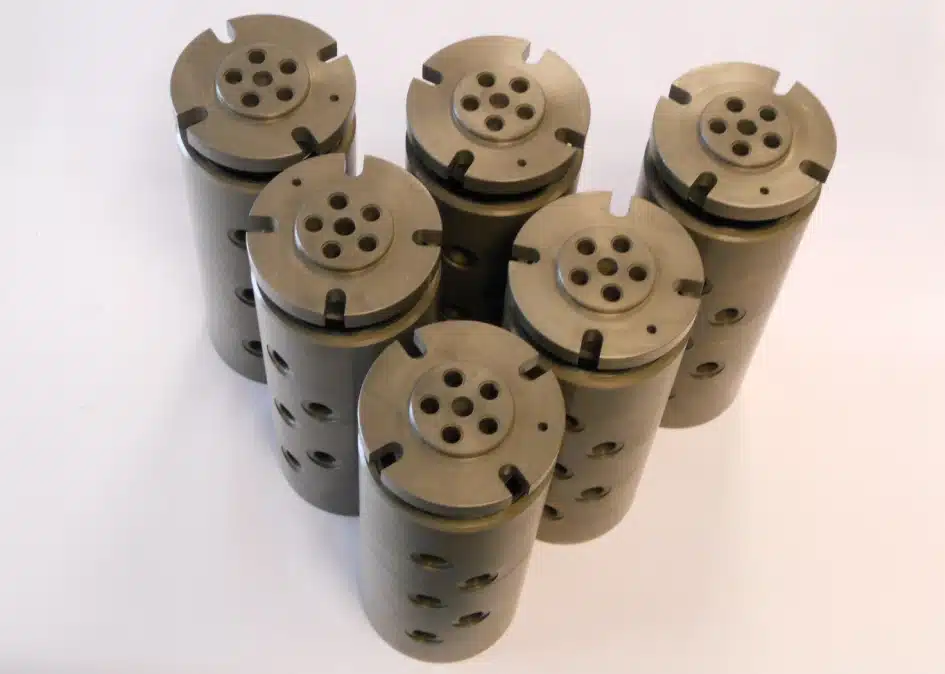

If you’re handling multiple media, look for multi-passage designs. These allow independent channels for air, oil, and steam, all within the same unit.
Maintenance and Lifespan Tips
To get the most from your rotary union, proper maintenance is essential. Here’s what to watch for:
- Leaks or pressure loss at the joint
- Unusual vibration or noise during operation
- Visible wear around the seal or housing
- Reduced flow or inconsistent media delivery
Some unions are manufactured for easy servicing, with replaceable seals or bearings. Others are sealed for life.
Tip: If your operation is 24/7, always keep a spare unit on-site. Downtime costs far more than a backup part.
Common Buyer Mistakes to Avoid
Don’t get caught out by simple oversights. Here are the traps many buyers fall into:
- Focusing only on maximum pressure and forgetting about speed
- Assuming one seal type works for every media
- Choosing premium materials unnecessarily, pushing up costs
- Not accounting for thermal expansion from steam or hot fluid
- Ignoring flow restrictions when using multi-passage designs
Tip: Document your system’s pressure, speed, media, and temperature range before shortlisting any product.
Delivery and Procurement Advice
Before placing an order, check:
- Estimated lead times for off-the-shelf vs custom builds
- Certification availability (e.g. material grade or pressure testing)
- After-sales support—can you get replacements, rebuild kits, or tech advice?
The more accurate your technical brief, the faster you’ll receive a suitable solution.
Real-World Applications
Rotary unions UK customers rely on are used across industries like:
- Food processing, where hygienic seals and precision are critical
- Paper and textile mills, where steam and rotating machinery operate continuously
- Pharmaceuticals, with strict cleanliness and material traceability needs
- Hydraulic platforms and reel systems, where rugged carbon steel builds are often preferred
These examples highlight how important it is to match the rotary union to the exact job.
Final Thoughts
When selecting a rotary union, think beyond fittings and thread sizes. Focus on the right materials, seal, and design for your pressure, speed, and media. Choose wisely, and your equipment will run longer, safer, and with fewer surprises.
Need a starting point? Explore this rotary union range for configurable designs that suit everything from air lines to steam drums—built with premium materials, reliable seals, and proven technologies.
With the right rotary union in place, your systems won’t just function—they’ll thrive.
Frequently Asked Questions (FAQs)
What is a rotary union and how does it work?
A rotary union—sometimes called a rotary joint—is a mechanical device that allows the transfer of fluid, air, oil, or steam between a stationary source and a rotating component. It maintains a secure seal while the shaft or drum spins, enabling safe, leak-free flow in systems that rely on a common rotational axis.
Where are rotary unions used?
You’ll find rotary unions in many applications across manufacturing, packaging, food processing, printing, textiles, and offshore energy. Any system involving rotating machinery and media transfer—especially under high pressure—can benefit from using a properly designed rotary union.
What’s the difference between a swivel joint and a rotary joint?
Swivel joints allow angular or oscillating motion, typically used in hoses or pipe systems that don’t need full rotation. Rotary joints (or rotary unions) support full, continuous rotation. The right option depends on how your machinery moves and how the media needs to flow.
Which materials are best for rotary unions?
Material selection depends on your application.
- Carbon steel is strong and cost-effective for general industrial use.
- Stainless steel is corrosion-resistant and suited to steam, oil, or chemical environments.
- Premium materials like titanium or composite plastics are used for specialised systems or when handling aggressive media.
The union should be manufactured using materials compatible with your pressure, temperature, and fluid type.
How do I know which seal type to choose?
The right seal depends on the type of media, pressure range, speed of rotation, and operating temperature.
- Mechanical seals are ideal for high pressure and high-speed rotating equipment.
- Lip seals work for lighter-duty setups.
- Bellows or spring seals suit systems with vibration or slight misalignment.
A poor seal choice can cause leaks, reduced performance, or damage to your system.
Can rotary unions handle more than one media at once?
Yes. Some rotary unions are designed for multiple independent channels, allowing the transfer of more than one media—such as air, oil, and cooling water—through a single unit. These are often used in complex systems where space is limited or precision flow control is required.
Are all rotary unions suitable for high-pressure applications?
No. Rotary unions must be rated for the specific pressure of your system. Operating a union beyond its rated capacity may damage the seal, overheat components, or lead to failure. Always check the technical specifications before installation, especially in high pressure or steam systems.
How do I choose the right rotary union for my machinery?
Start by identifying:
- Your media type (e.g. fluid, air, steam)
- Operating pressure and temperature
- Shaft speed (RPM)
- Motion type (rotating vs pivoting)
- Installation constraints and connection sizes
From there, match your requirements to the union’s design, material, and seal type. For critical applications, consider rotary unions manufactured to order with industry-specific technologies.
